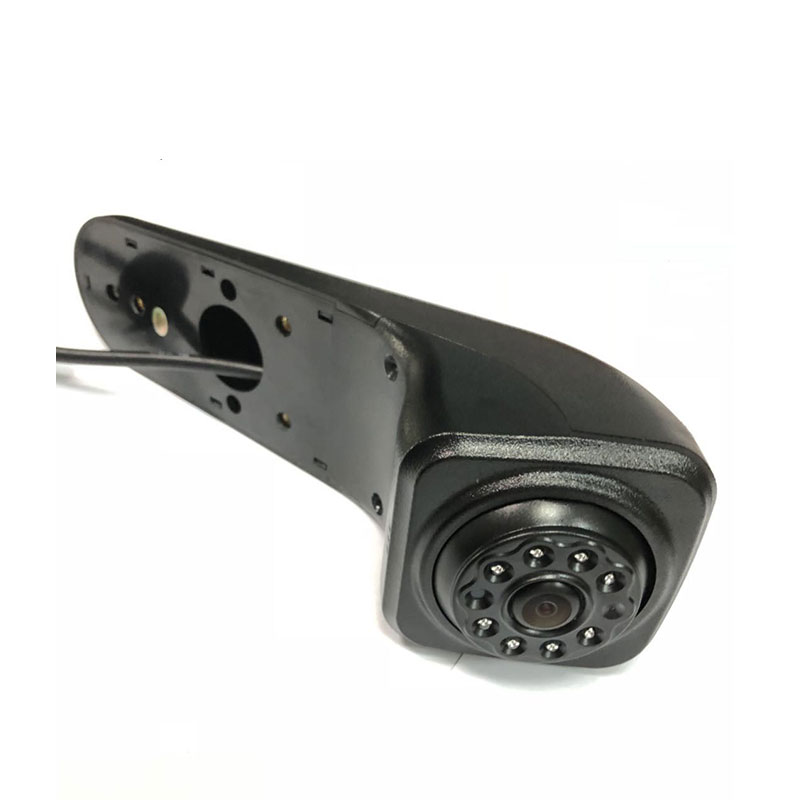

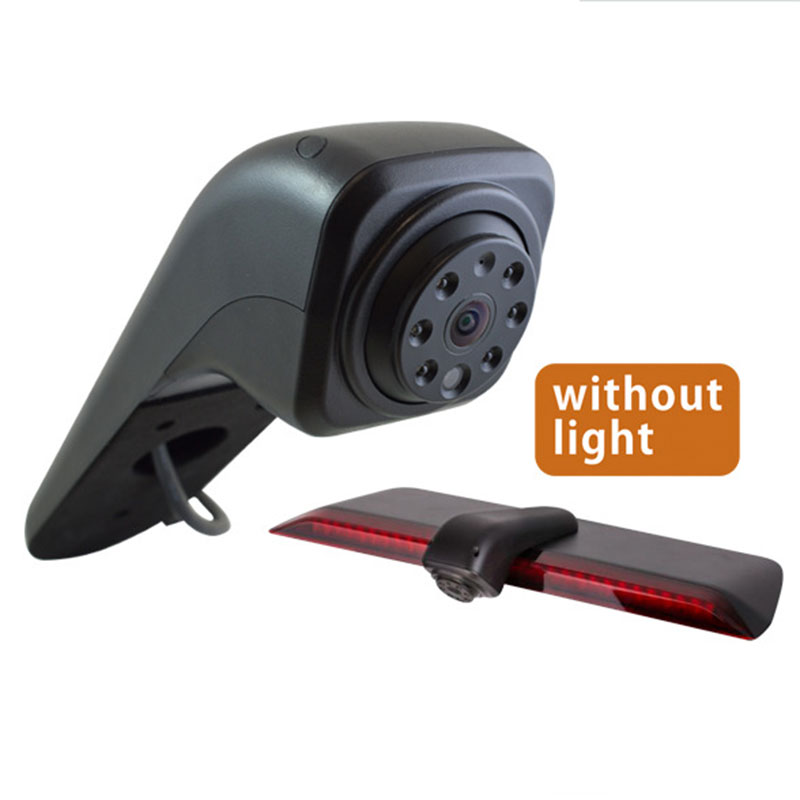

2017 CRAFTER Van Brake Light Camera
Type | 2017 CRAFTER van brake light camera | |||
Sensor | 1/4 PC7070 CMOS | 1/3 PC4089 CMOS | 1/3 SHARP CCD | 1/3 NVP SONY CCD |
Resolution: | 640(H) x 480(V) | 756(H) x 504(V) |
N:768×582 pixels P: 768×494 pixels |
N:752×494 pixels P: 752×582 pixels |
TV line | 420TVL | 420TVL | 480TVL | 600TVL |
Lens: | 1.7mm | 1.7mm | 1.7mm | 1.7mm |
Min illumination: | 0.1Lux (LED ON) | 0Lux (LED ON) | 0Lux (LED ON) | 0Lux (LED ON) |
IR led: | 8pcs | 8pcs | 8pcs | 8pcs |
Night Vision distance: | 30ft | 35ft | 35ft | 35ft |
Waterproof | IP68 | IP68 | IP68 | IP68 |
View angle: | 170° | 170° | 170° | 170° |
Power voltage: | 12V | 12V | 12V | 12V |
Operation Temp.: | -20℃~+70℃ | -20℃~+70℃ | -20℃~+70℃ | -20℃~+70℃ |
Microphone | / | / | / | / |
Reverse guide | optional | optional | / | / |
10m cable | Inclued | Inclued | Inclued | Inclued |
