4CH 1080P HDD DVR

* H.265 encoding, high compression ratio, clear image

* Support 4CH AHD inputs, and 1CH IPC input

* AHD/TVI/CVI/IPC/ Analog video inputs

* Support real-time encoding of 4 channels and 25 frames

* Support for CVBS or AHD (720P) output for option, 1CH VGA output

* Support 5G

* Support CAN

* Built-in G-sensor, monitoring of vehicle driving behavior

* Support reversing image ranging assistance

* Support image horizontal and vertical mirror adjustment

* Unique GPS drift suppression algorithm

* Input pulse automatic calibration algorithm

* Support Maintenance Tool debugging and maintenance

* Professional hard drive oil pocket shock absorption

Power supply:

* Professional vehicle power supply 9-36V DC wide voltage

* Low voltage, short circuit, reverse connection and other protection

* Support intelligent power management identification, low power automatic shutdown, flameout low power consumption

Data storage:

* 4CH 1080P HDD DVR Built-in super capacitor prevents data loss and disk damage

* A special file management adopted to encrypt data to effectively protect data security

* Support 2.5 inch Hard Disk storage, up to 2TB

* Support SD card storage, up to 512GB

Wireless module:

* Built-in GPS/BD/GLONASS module, high sensitivity, fast positioning

* Built-in 4G module, support LTE/HSPA/WCDMA(5G optional)

* WIFI module (optional), support 802.11b/g/n, frequency 2.4ghz

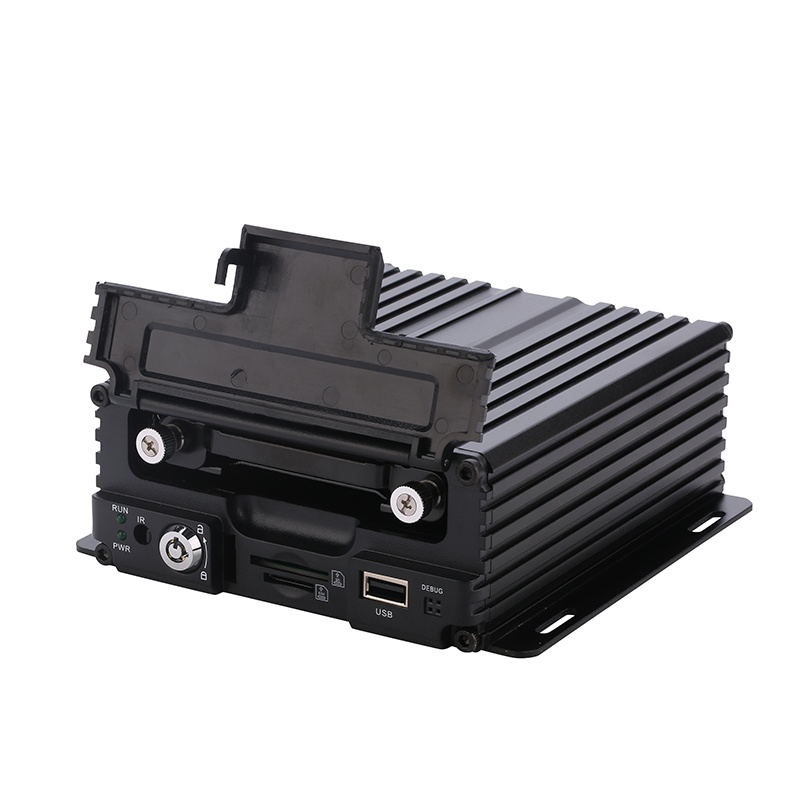

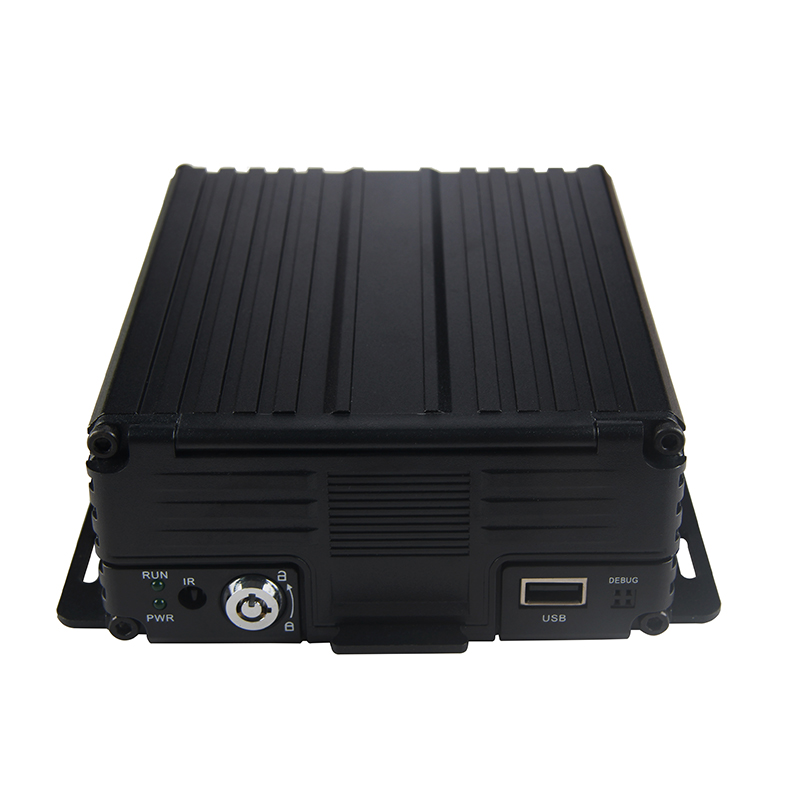

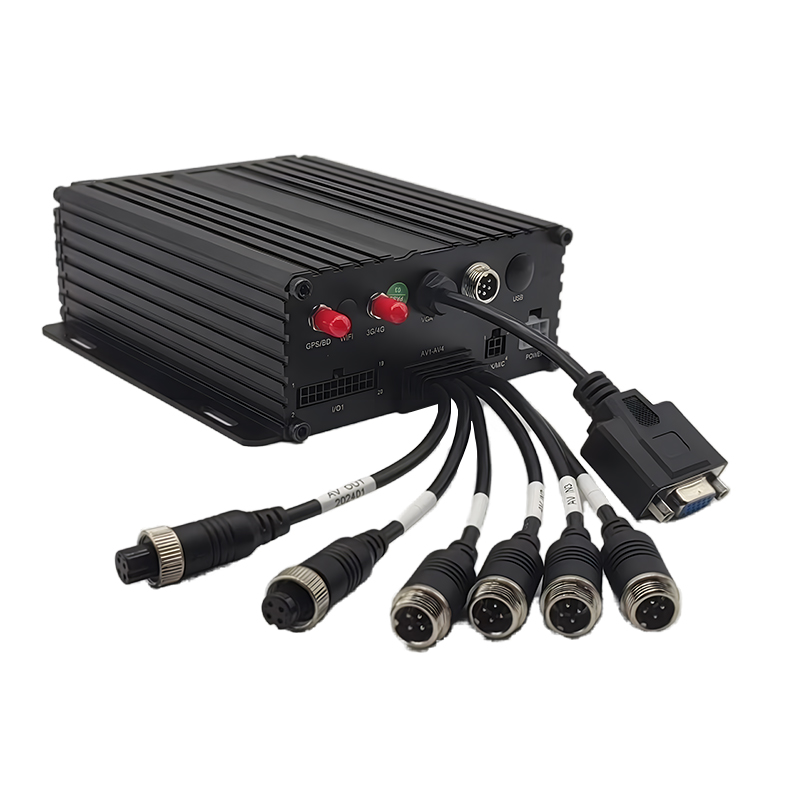

Product images
