7 Inch Quad Split Car HD Camera Monitor
CL-S760AHD-Q is a 7 Inch Quad Split Car HD Camera Monitor that supports four-channel HD cameras, supports up to 1080P, supports single/split/quad view display, The 7" split screen quad monitor support infrared remote control and automatic brightness adjustment.
Model:CL-S760AHD-Q
Send Inquiry
Product Description
7 Inch Quad Split Car HD Camera Monitor Main features:
7 Inch Split Screen Quad Monitor with 4 CH Video Input
NEW TFT 7" panel , 16 : 9 image
Resolution : 1024x RGB x 600
Brightness : 400 cd/m2
4 video inputs ( 4 PIN aviation connector)
Single /Split /Quad view selectable
Auto-compatible with CVBS/AHD camera(108OP/7 20P/D1)
PAL/NTSC adjustable
Each channel has trigger wire
Trigger priority: CAM 2>CAM 1>CAM 3>CAM4
High-low voltage protection & short circuit protection
view angle:L/R:70,UP:50,down:70 degree
Built-in speaker (optional)
Power requirement: DC 9~32 v
Detachable sunshade
Metal U type bracket
|
Screen size |
7'' |
|
Resolution |
1024*RGB*600 |
|
view angle |
L/R:70,UP:50,down:70 degree |
|
Input interface |
4HAD(pin) |
|
AHD camera |
D1/720P/1080P |
|
Brightness |
400 cd/m2 |
|
Trigger wire |
4 |
|
Trigger priority |
AHD2 |
|
Touch button |
YES |
|
Button with lamp |
YES |
|
PAL/NTSC system |
YES |
|
Compatible camera |
AHD/CMOS/CCD |
| Screen ratio | 16:9 |
| Power Volt. | DC 9V-32V |

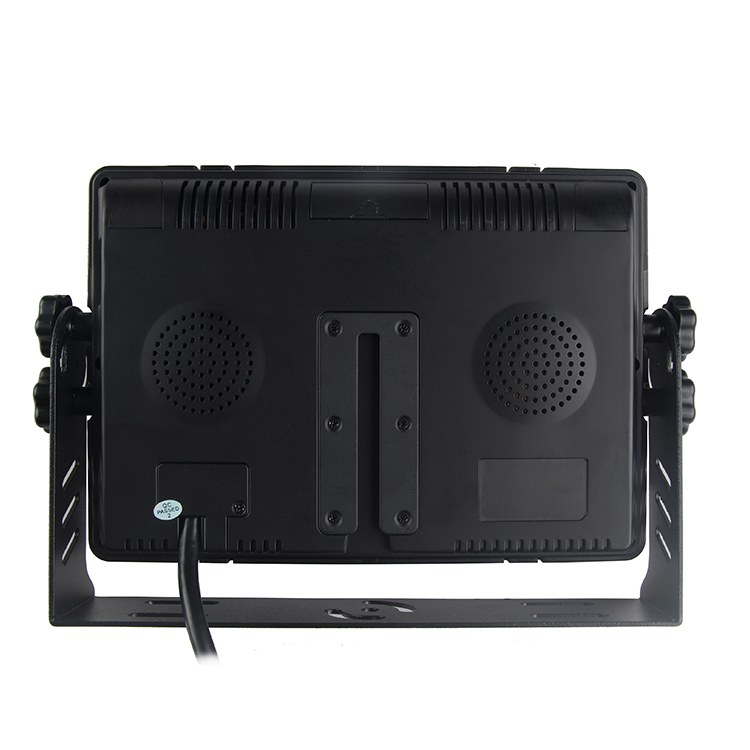

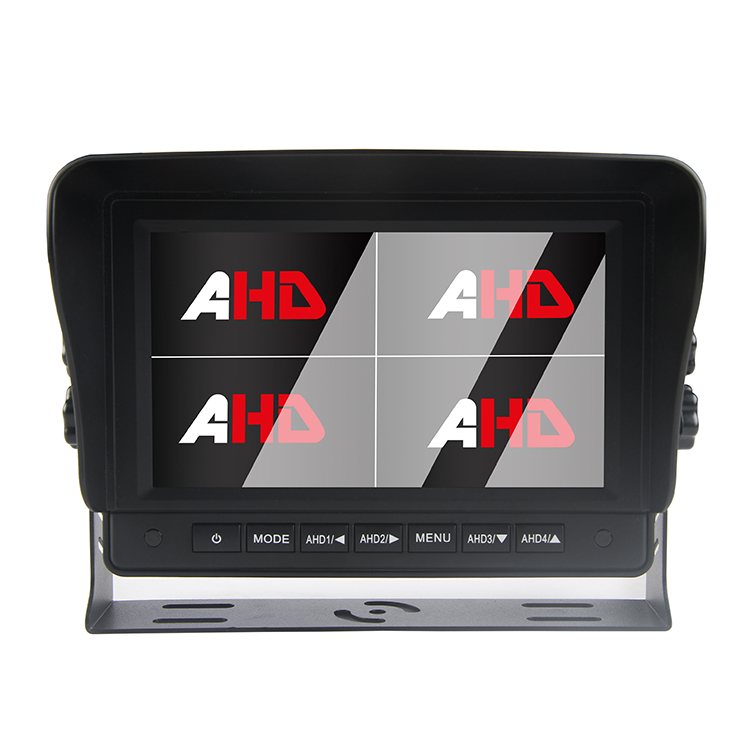

7 Inch Quad Split Car HD Camera Monitor Images:
