New Vehicle Side Camera

Carleader is an expert in the production of New Vehicle Side Camera. Our customers' needs will be solved as soon as possible. We hope to cooperate with you.

Model:CL-906

Send Inquiry

Product Description

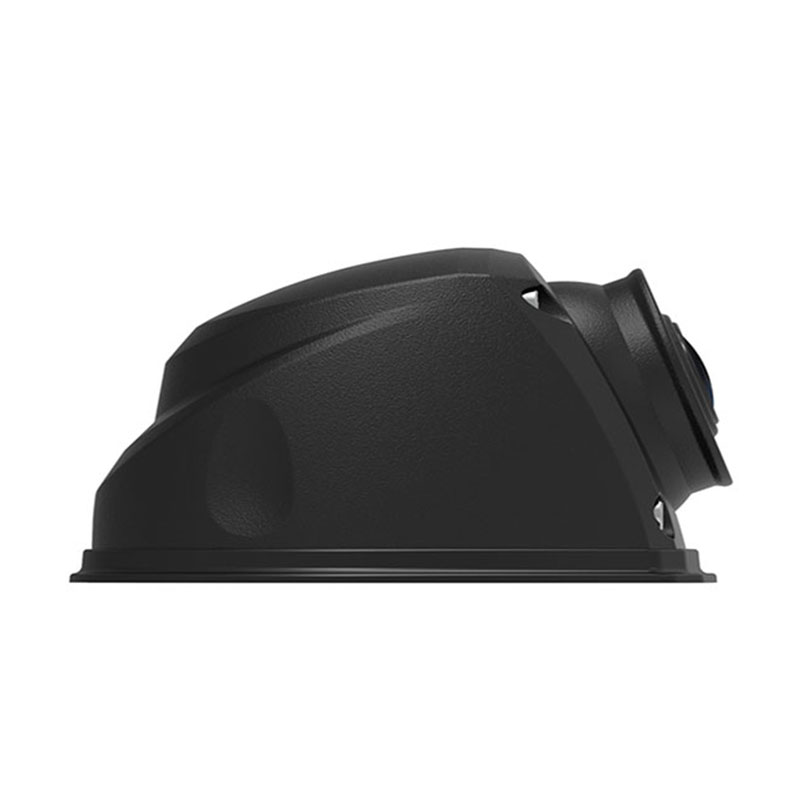

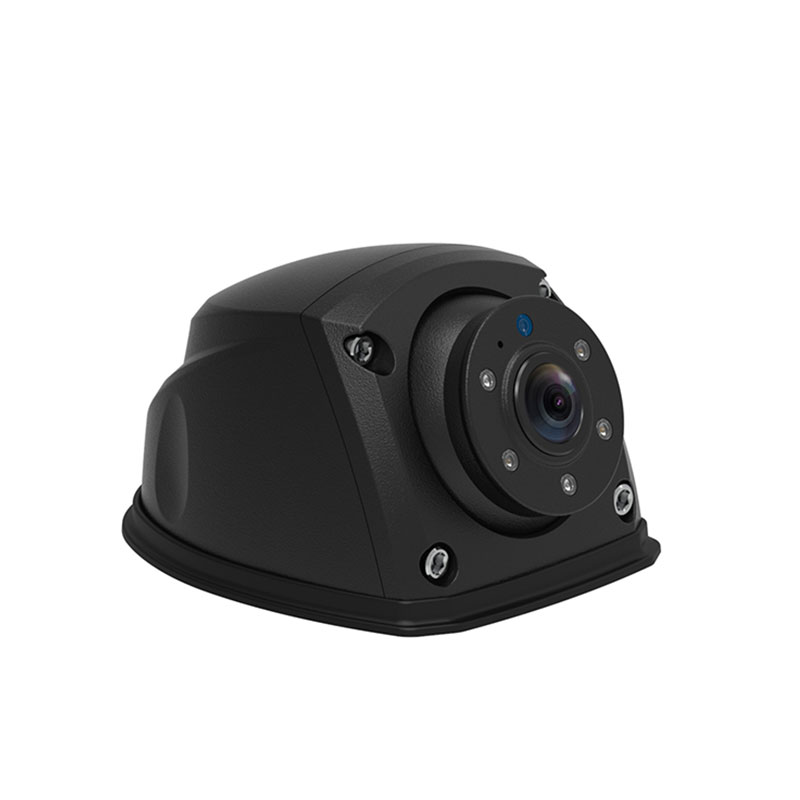

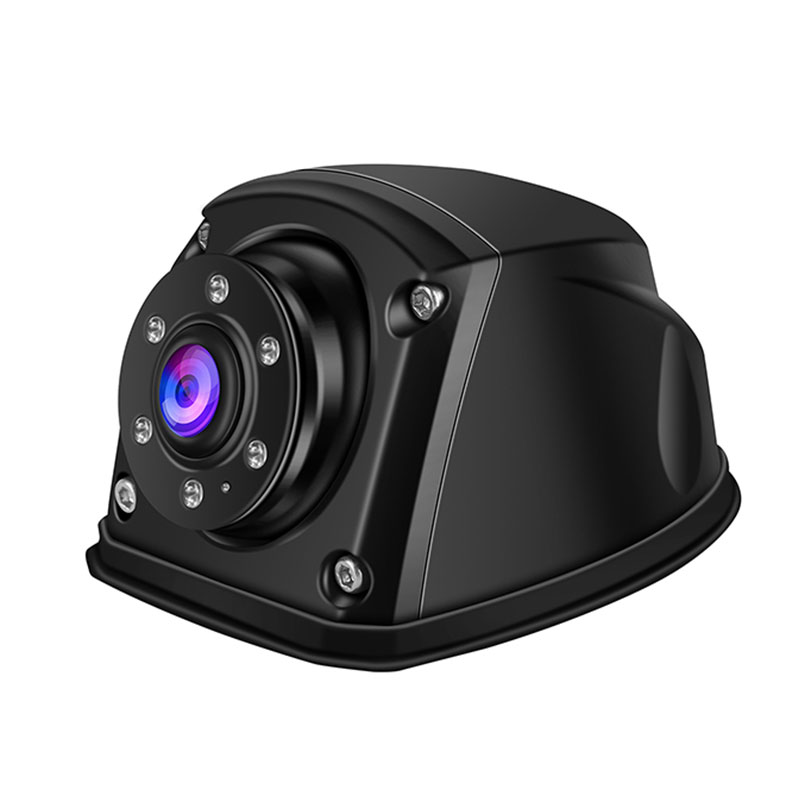

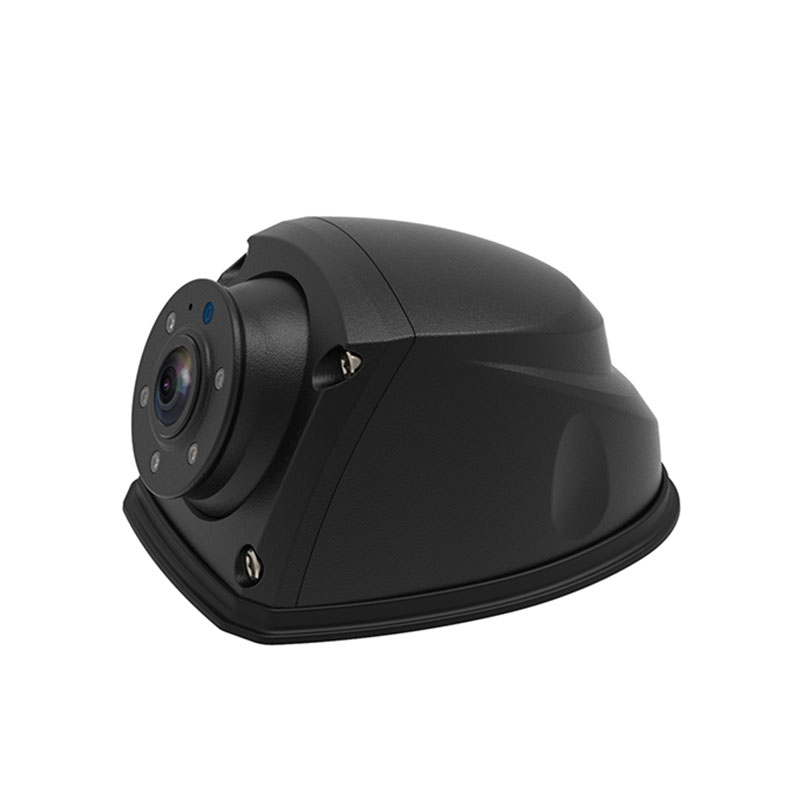

Carleader's new vehicle side camera are suitable for large vehicles,such as caravan,mining cars,heavy truck,crane,agriculture machine,trailer,excavator,fire fighting truck,wheel loaders etc.Usually the new vehicle side camera are installed on the side of vehicle.

※Latest trimming part

New vehicle side car camera adopt the latest generation of trimming cap with connecting line,compared to the old traditional cut line and non line lid, it is much more convenient for use and win customers’ favor.

Mirror/Normal view switch control allows the connected new vehicle side camera to be used either as rear view or front view cameras.

※High level of waterproof grade

New vehicle side camera are all submersion test and the IP waterproof level is up to IP68 or higher,what means that new vehicle side camera are waterproof,dustproof,weatherproof and resistant to damage.

※Updated slim line connector

Carleader’s new vehicle side camera designed with slim line connector,which is much more beautiful and practical than the former standard 4PIN connector.

Product specification:

Model：CL-906

Name：new vehicle side camera

D1/720P/960P/1080P Option
Images Sensors:1/2.7″&1/3″
Power supply:DC 12V ±1
Mirror image & non-mirrored image optional
Lux:0.5 LUX (5 LED)
Lens:2.0mm
Effective Pixels:668x576
S/N ratio:≥48dB
Dimension:300mm(L)*300mm(W)*210mm(H)
System:PAL/NTSC optional
View Angle:120°/140°
Audio output:built-in optional
IP Rating:IP69
Operating Temperature(Deg. C):-20~+75(RH95% Max.)
Storage Temperature(Deg. C):-30~+85(RH95% Max.)
