10-inch RV safety monitor

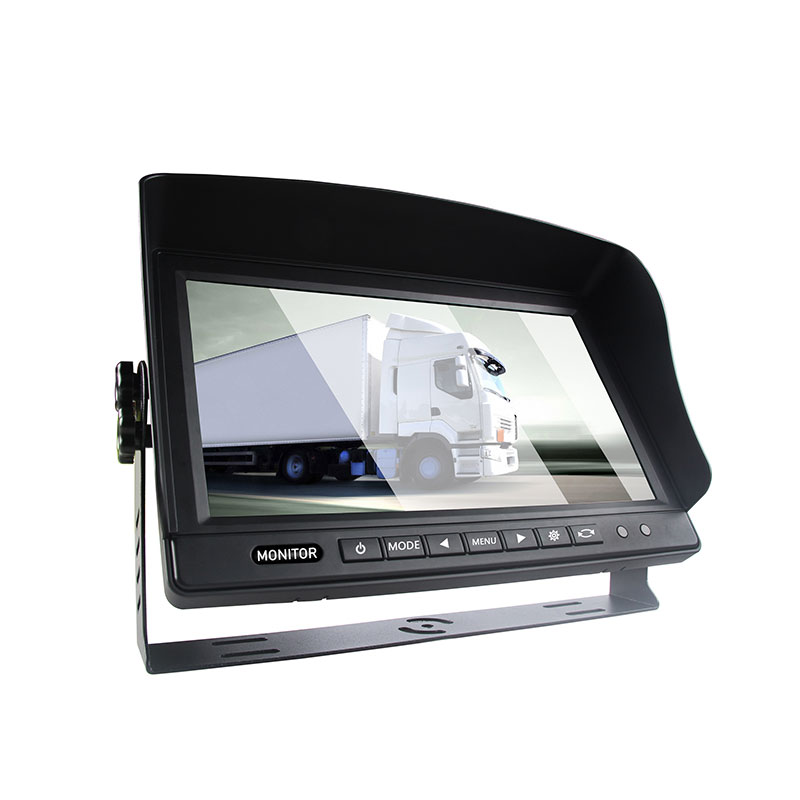

※ 10inch caravan LCD dash mount monitor includes an OSD menu that you can adjust sharpness,brightness,contrast and also allows you to rotate and reflection of image to realistically display the up and down,right and left side.IR remote control makes easy operation of the above functions.
※ 10inch caravan LCD dash mount monitor use new color TFT panel,screen resolution reach up to 1024*RGB*600 with a 16:9 screen ratio,Auto switchable AV2 when trigger reverse cable,default trigger priority AV2,also you can set the trigger priority manually in the menu.

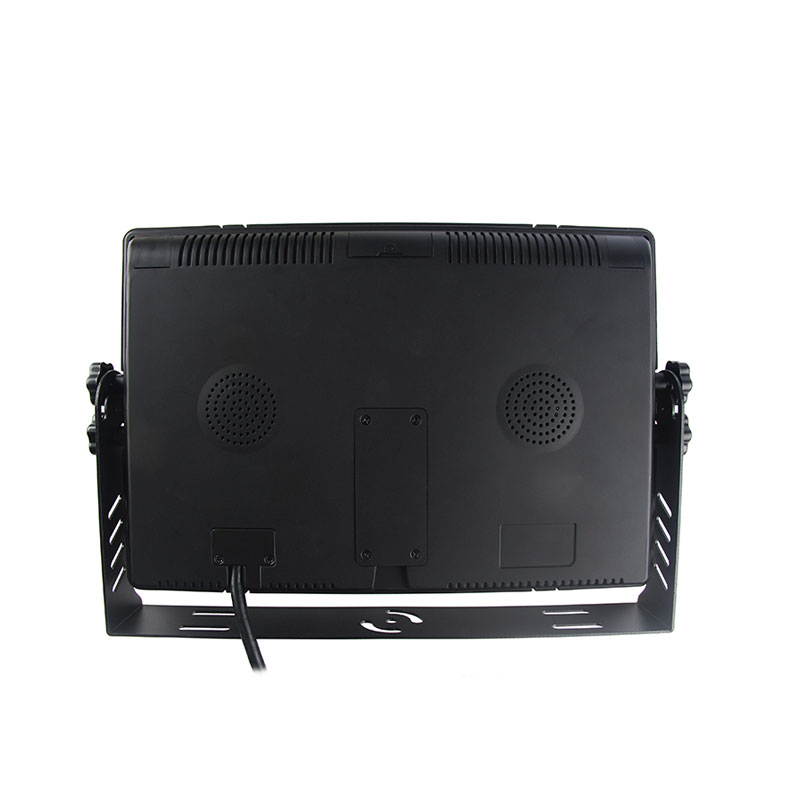

※ There are two speaker cavities in the 10inch caravan LCD dash mount monitor ’s back housing shell,customer can choose built-in speaker function or not according to their actual requirements.
※ Built-in ball black dot auto dimming function on the side of the 10inch caravan LCD dash mount monitor,which can adjust the screen’s brightness automatically according to the circumstance’s change,no need to regulate manually and makes the eye feel much more comfortable.
※ There are back light humanized designed in the 10inch caravan LCD dash mount monitor ’s key button,which makes driver also see clearly in the dark night.

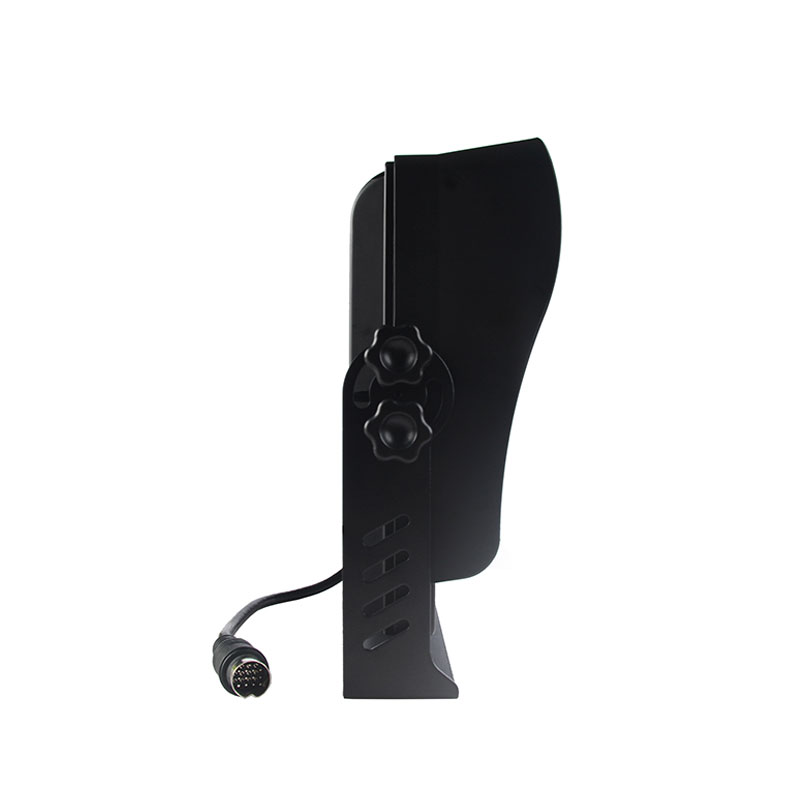

※ Detachable U shape or butterfly bracket which can adjust the height and inclination angle by hand according to customer’s demand,which assures the 10inch caravan LCD dash mount monitor displays stable and crisp images in the long distance transportation and harsh condition.Besides,removable sun visor can hide the direct sun shines and decrease the high temperature of the working car monitor.
Model |
CL-1019TM |
image |
16 : 9 |
System |
PAL / NTSC |
Video input |
2 video 4 pin connector inputs |
Brightness |
300 cd/m2 |
Contrast |
400 : 1 |
View angle |
L/R:70,UP:50,down:70 degree |
Language |
8 languages OSD,remote control |
Trigger |
One Trigger ,for AV2 on reversing |
Speaker |
Built-in speaker(optional) |
Sunshade |
Detachable sunshade |
Bracket |
Metal U type bracket |
Power supply |
DC 9~32 V |
Dimension |
25.5 x 16.7 x 3.0cm( without shade) 27.5 x 18.4 x 7.8cm (with shade) |
