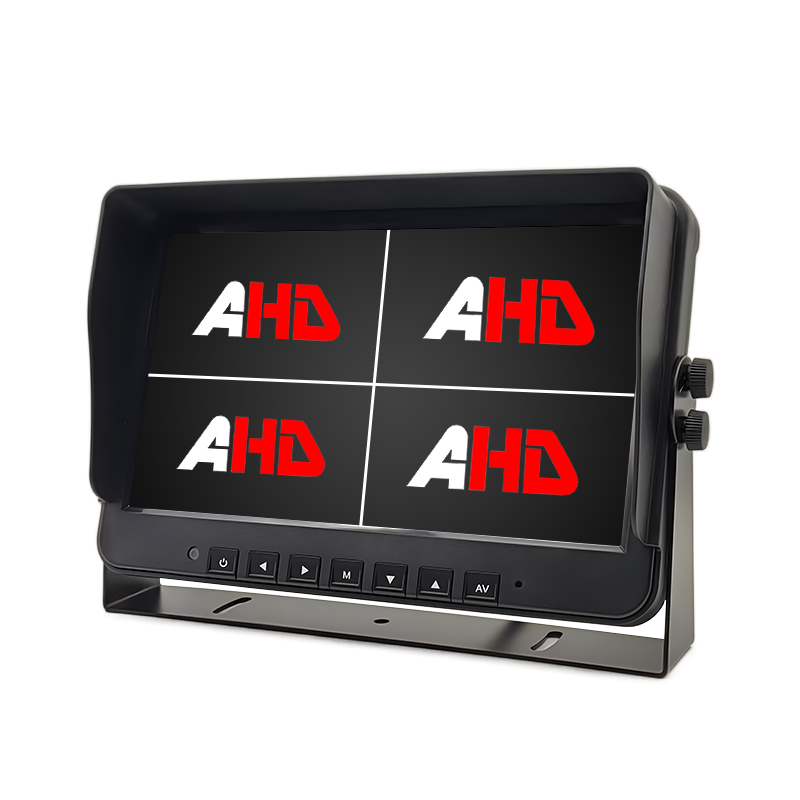

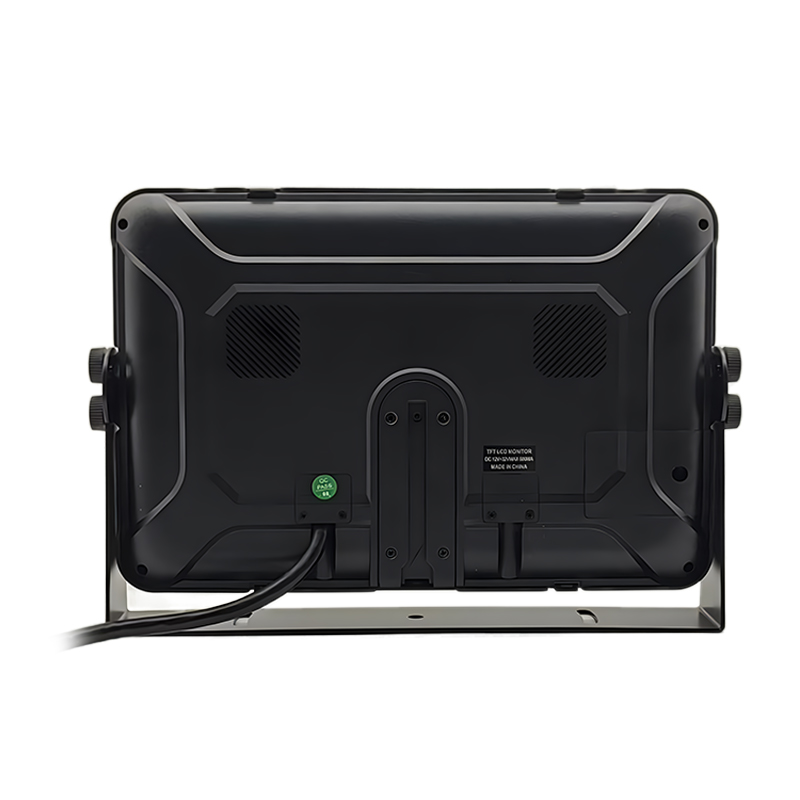

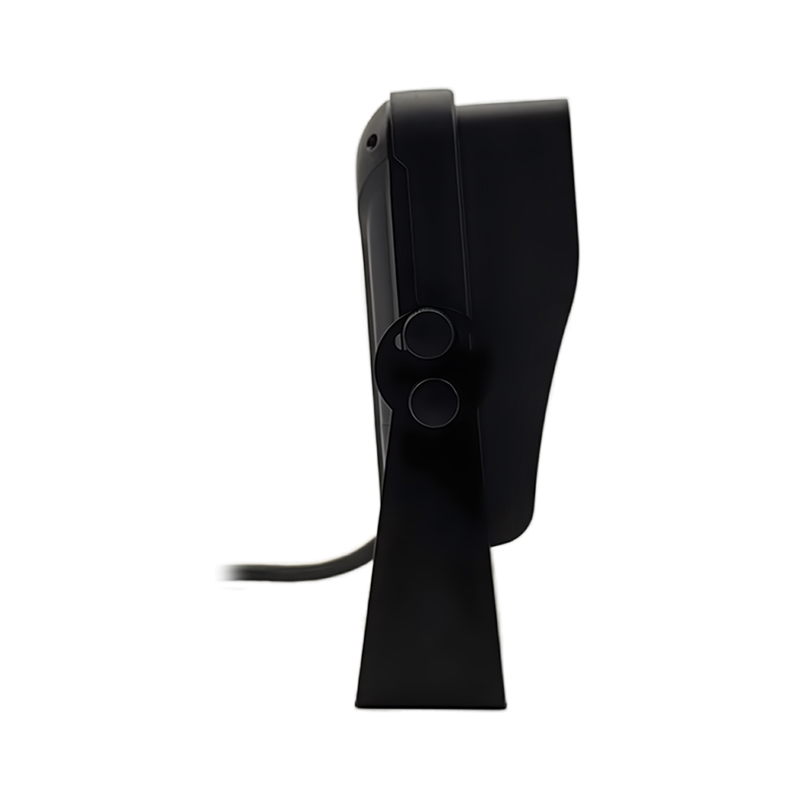

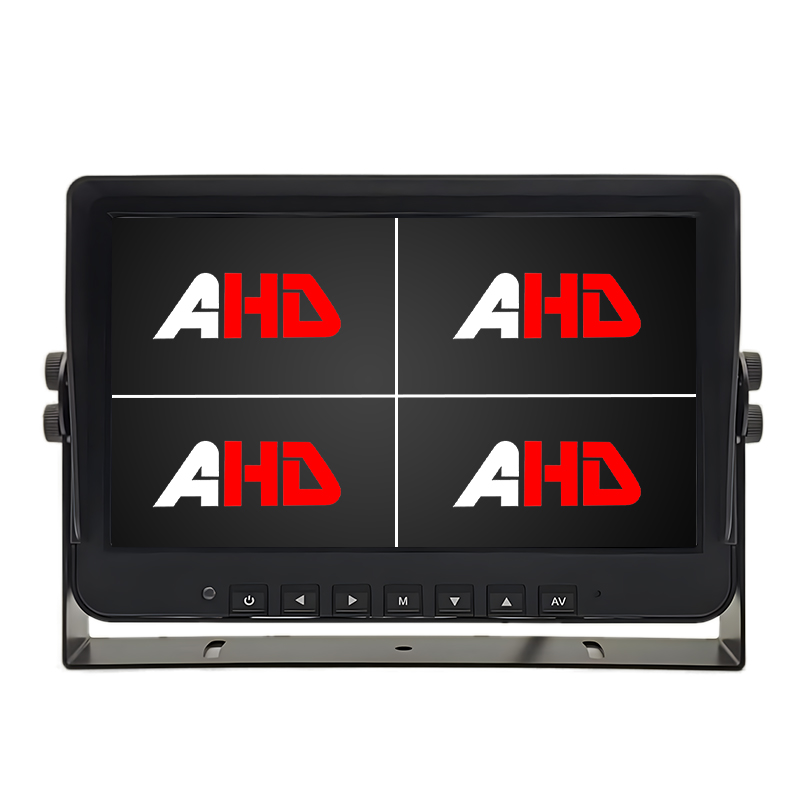

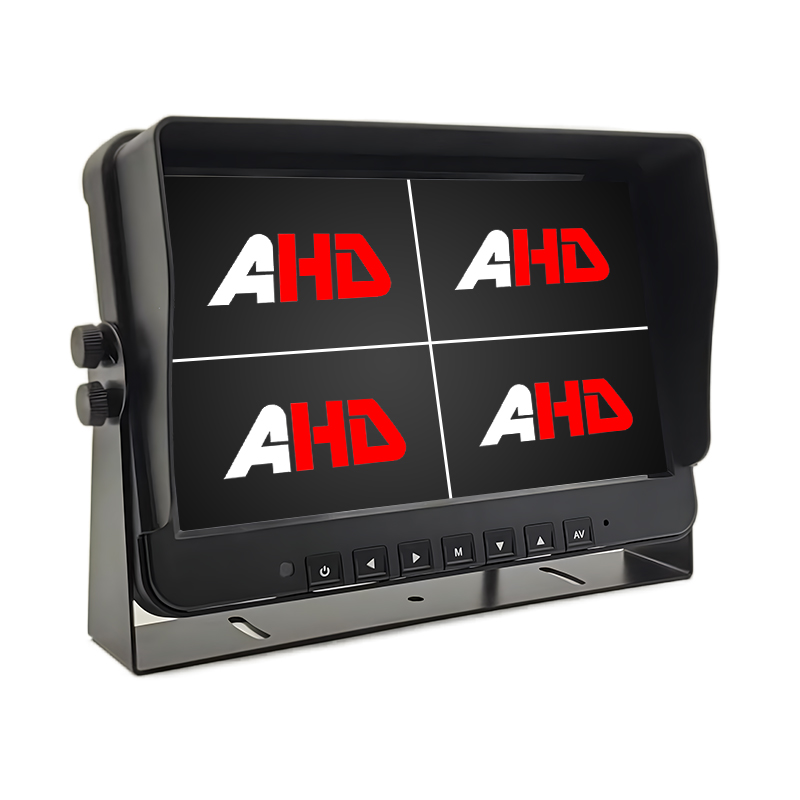

10.1-inch 4AV Inputs Quad View AHD Vehicle Monitor

Carleader New 10.1-inch 4AV Inputs Quad View AHD Vehicle Monitor provied high definition and real-time performance, greatly improves the safety and convenience of reversing operations, becoming an indispensable safety auxiliary tool for drivers.

Carleader are proud to present you our new 10.1-inch 4AV Inputs Quad View AHD Vehicle Monitor.

Product Parameter:

10'' big digital Innolux panel

Resolution: 1024xRGBx600

Brightness :550 cd/m2

4 AHD video input( AHD1/AHD2/AHD3/AHD4)

Each channel has trigger wire.AHD2 has priority

Video input format: D1/720P/1080P HD25/30fps PAL/NTSC

Compatible with AHD/CVBS camera

AHD1 with audio (Default)

4 channel with audio (Optional)

All buttons with backlights.

Built-in speaker optional

Auto dimming function optional

8 languages multi-function OSD setting, remote control

Each channel has audio function, audio can be  selected by setting

Each channel has bule screen, bule screen can be selected by setting

Power supply: DC 9-32V

Detachable sunshade

Metal U type bracket default,bracket is optional

* Dimension:25 x 16.5 x 3.0cm ( without shade)

                    25.5 x 17 x 6.5cm (with shade)
